HKS Super Turbo Muffler Cat-Back Exhaust System (31029-AS003) - Suzuki Swift Sport ZC33S K14C Turbo

Item: HKS Super Turbo Muffler Performance Exhaust System
SKU / Part Number: 31029-AS003
Brand: HKS Japan
Vehicle Fitment: 2017+ Suzuki Swift Sport (CBA-ZC33S / 4BA-ZC33S Models)
Engine Code Compatibility: K14C (1.4L Boosterjet Inline-4 Turbocharged)

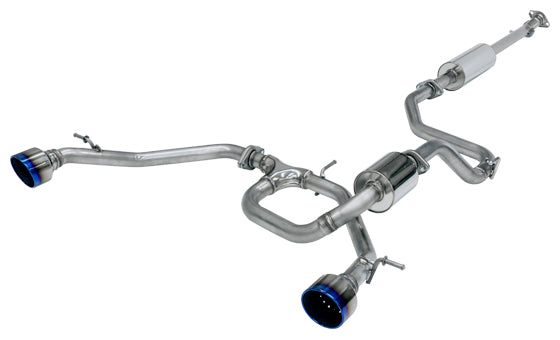

Exhaust Type: Full Cat-Back System (Includes Midpipe and Muffler Sections)
Muffler / Tip Shape Style: SSR (Super Turbo Muffler Slotted Tip Design)
Piping Material: Premium SUH409 Heat-Resistant Stainless Steel Composition

--------------------------------------------------------------------------------
DIMENSIONAL & WEIGHT SPECIFICATIONS
--------------------------------------------------------------------------------
* Main Pipe Diameter: Φ54mm -> Splits into Dual Φ50mm x 2 Pipes
* Exhaust Tip Outlet Diameter: Φ110mm x 2 Outlets (Left & Right Split)
* Number of Assembly Pieces: 3-Piece Layout Configuration
* Total Assembly Weight: 13.8 kg

--------------------------------------------------------------------------------
ACOUSTIC & PRESSURE DATA VALUES
--------------------------------------------------------------------------------
* Exhaust Back-Pressure Reduction: Approx. 65% Less Restrictive Than OEM Stock
* Idling Sound Profile: 57dB (HKS) vs 52dB (OEM Stock)
* Close Proximity Sound Limit: 87dB (HKS) vs 77dB (OEM Stock)

--------------------------------------------------------------------------------
COMPLIANCE & INSTALLATION NOTES
--------------------------------------------------------------------------------
* Chassis Compatibility: Fully compatible with later-year 4BA-ZC33S updates (2020+)
* Bumper Clearance: Designed for direct bolt-on fitment with factory exhaust cutouts
* Japanese Inspection Standard: Complies completely with JQR street legality regulations

HKS Super Turbo Muffler Cat-Back Exhaust System (31029-AS003) - Suzuki Swift Sport ZC33S K14C Turbo

RM5,300.00 MYR
Enquire on WhatsApp
Slash exhaust back-pressure by an overwhelming 65% over the factory setup by utilizing HKS’s optimized 54mm to dual 50mm straight-through layout. Engineered purposefully with a non-reduction internal structure, this cat-back design dramatically accelerates turbocharger spool speeds and supplies the flow capacity required for future high-power turbine upgrades. It acts as a vital structural upgrade for street and track builds executing custom ECU tuning or aggressive track workloads.
Minimize unnecessary dead weight completely via the deliberate deployment of advanced SUH409 heat-resistant stainless steel piping. Rather than forcibly adding heavy bracing blocks to control thermal expansion under track abuse, HKS uses a specialized substrate blend that eliminates physical distortion while dropping total system weight down to just 13.8kg. This intelligent weight reduction is balanced by an optimized silencer geometry that avoids hanging restrictions under your bumper.

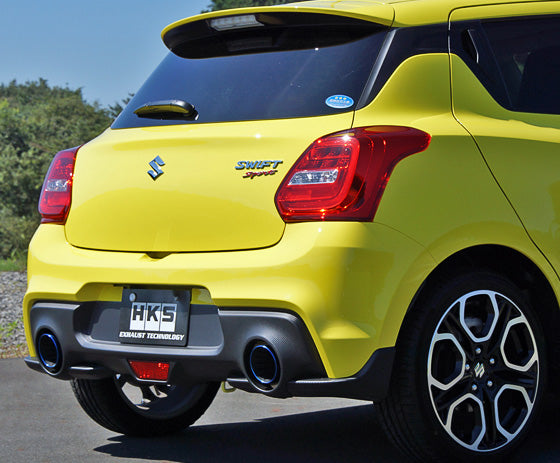

Experience a deep, sophisticated sports exhaust profile topped off visually by clean, dual 110mm slotted exhaust tips that integrate cleanly into the stock rear bumper fascia. The highly efficient acoustic design increases close-proximity volume safely from the hushed factory 77dB up to a crisp 87dB, maintaining a mild 57dB hum at idle. This guarantees you can effortlessly sustain highway cruising conversations or map early morning commutes without suffering painful interior cabin drone.
