Kelford G16E-GTS Performance Camshafts & Valve Springs - Toyota GR Yaris / Corolla

Kelford G16E-GTS Performance Camshafts & Valve Springs - Toyota GR Yaris / Corolla

267-EZ Cams only
RM3,500.00 MYR
Skip to product information
Kelford G16E-GTS Performance Camshafts & Valve Springs - Toyota GR Yaris / Corolla

====================================================================
PRODUCT SPECIFICATIONS: KELFORD G16E-GTS ENGINE VALVETRAIN COMPONENTS
====================================================================
Applicable Car Models: Toyota GR Yaris (2020+), Toyota GR Corolla (2023+)
Engine Model: Toyota G16E-GTS (1.6L 3-Cylinder Turbo)

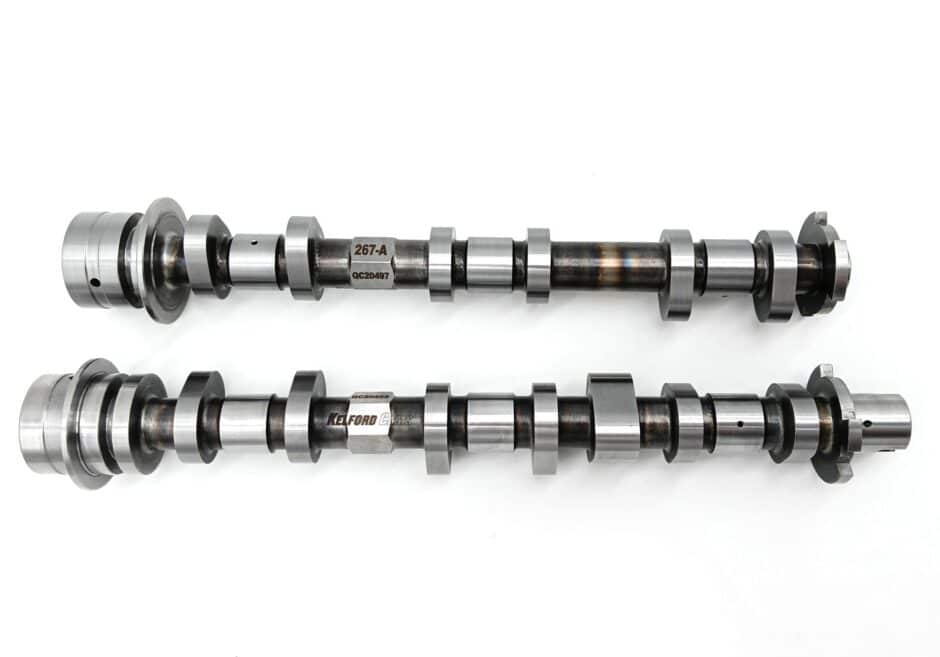

Item: Kelford 267-EZ
Product Type: EZ Drop-In Performance Camshafts
Camshaft Profile: 258°/258° Duration | 11.50mm/11.50mm Lift
Valve Spring Requirement: Works with stock valve springs

Item: Kelford 267-A
Product Type: Stage 1 High Performance Camshafts
Camshaft Profile: 266°/274° Duration | 11.50mm/11.50mm Lift
Target Power Output: 350-500 HP (48-54mm Turbo Upgrades)
Valve Spring Requirement: Requires upgrade (KVS264 Recommended)

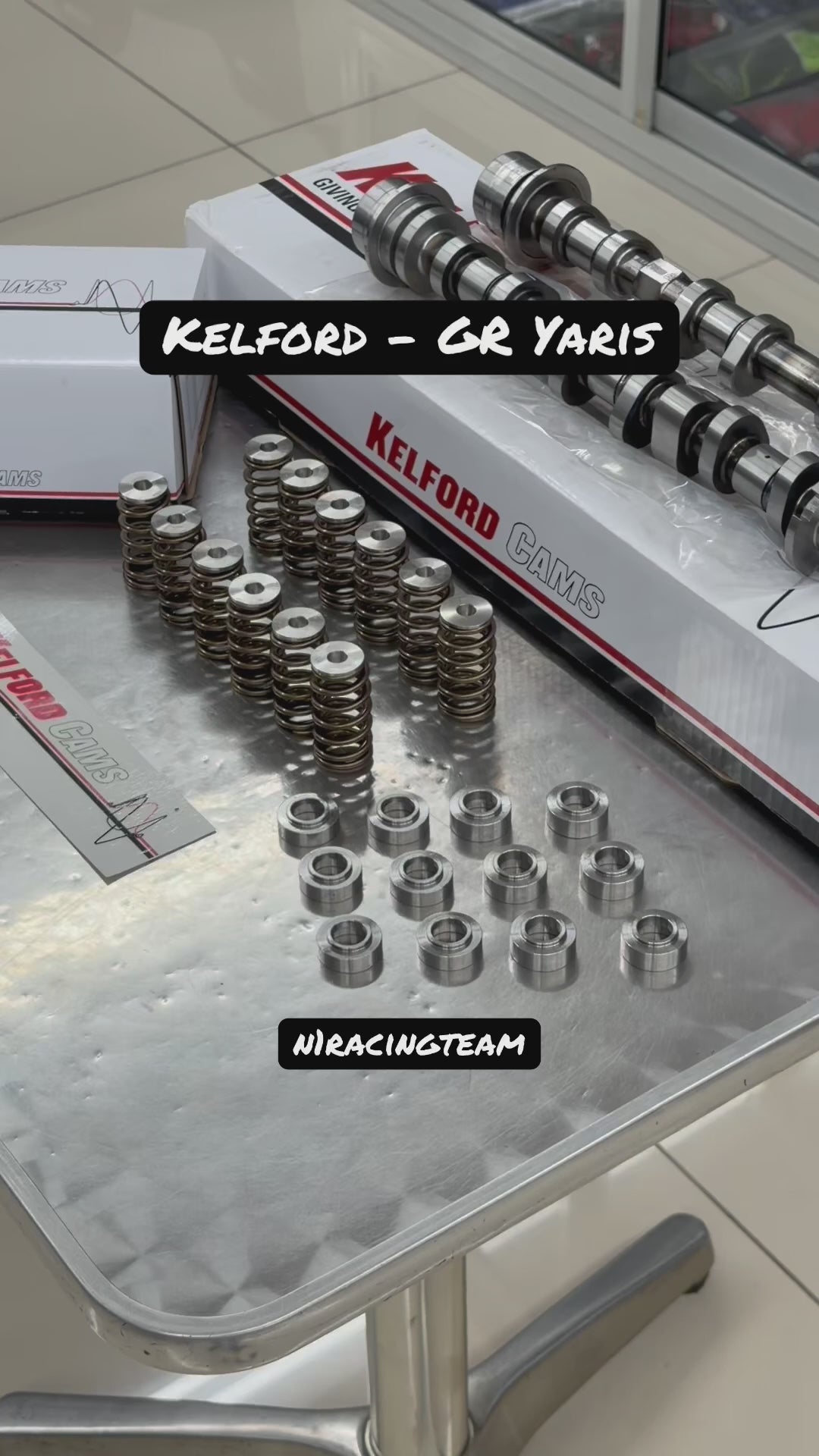

Item: Kelford KVS264
Product Type: Performance Beehive Valve Springs & Titanium Retainers
Intake Specifications: 100lb seat pressure @ 35.0mm / 198lb @ 12.0mm lift
Exhaust Specifications: 87lb seat pressure @ 36.7mm / 178lb @ 11.5mm lift
Installation Note: Must remove OEM spring bases and install supplied bases

Kelford G16E-GTS Performance Camshafts & Valve Springs - Toyota GR Yaris / Corolla

RM3,500.00 MYR
Variation
Enquire on WhatsApp
Kelford 267-EZ Drop-In Camshafts
Unlock instant power upgrades with the Kelford 267-EZ Easy Power Drop-In Camshafts, precision-engineered explicitly for the Toyota G16E-GTS engine found in the GR Yaris and GR Corolla. Maintain flawless factory street drivability and sharp throttle response without the need to modify your valvetrain, as this profile is built to work seamlessly with your stock valve springs. Maximize your tuning potential whether running a stock turbo or a complete turbo upgrade, making it the perfect choice for owners seeking an effortless drop-in horsepower boost with a standard re-tune.
Kelford 267-A Stage 1 Camshafts
Dominate high-performance driving using the Kelford 267-A Stage 1 Camshafts, designed to optimize 350 to 500 horsepower builds utilizing an upgraded 48mm to 54mm turbocharger. Safely sustain extreme engine speeds of up to 8000 RPM and handle aggressive 30 PSI boost pressures with confidence. Achieve ultimate valvetrain reliability by pairing this profile with the required Kelford KVS264 valve spring and titanium retainer kit to unlock the true racing characteristics of your G16E-GTS engine.
Kelford KVS264 Valve Spring & Retainer Kit
Eliminate critical valvetrain weak points with the Kelford KVS264 Performance Beehive Valve Spring and Titanium Retainer Kit, meticulously designed for the Toyota G16E-GTS platform. Drastically reduce moving valvetrain mass utilizing ultra-lightweight titanium retainers that prevent destructive valve float during high-RPM operations. Support aggressive aftermarket camshaft profiles with a robust configuration that delivers 100lb intake seat pressure and 87lb exhaust seat pressure to keep your high-boost engine firing reliably.
